Codefest 2020 - telephone [Forensics]

telephone was one of the forensics challenges in codefest ctf 2021.

The challenge has some forensics elements but is mostly stego.

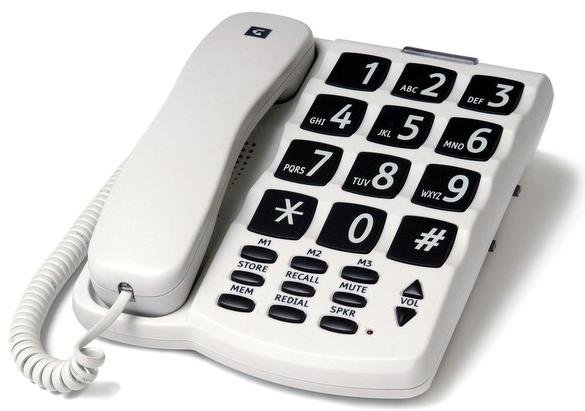

We get a PNG image named telephone.png:


From here we run the usual stego tools, and find some hidden data with zsteg:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
[email protected]:/data# zsteg telephone.png
imagedata           .. text: "\r\r\rEFC43."
b1,bgr,lsb,xy       .. text: "Jhttps://mega.nz/file/wuQ1lKYD#nNT3WpsoYXH1z4fm3rsDkncbFae7Yn7FiO94TnYAxGo\n"
b2,r,lsb,xy         .. file: 5View capture file
b2,r,msb,xy         .. file: VISX image file
b2,g,lsb,xy         .. file: 5View capture file
b2,g,msb,xy         .. file: VISX image file
b2,b,lsb,xy         .. file: 5View capture file
b2,b,msb,xy         .. file: VISX image file
b2,rgb,lsb,xy       .. file: 5View capture file
b2,rgb,msb,xy       .. file: VISX image file
b2,bgr,lsb,xy       .. file: 5View capture file
b2,bgr,msb,xy       .. file: VISX image file
b4,r,msb,xy         .. text: ["w" repeated 10 times]
b4,g,msb,xy         .. text: ["w" repeated 12 times]
b4,b,msb,xy         .. text: ["w" repeated 9 times]
b4,rgb,msb,xy       .. text: ["w" repeated 29 times]
b4,bgr,msb,xy       .. text: ["w" repeated 28 times]

The hidden data is just a link to mega.co.nz containing the file sound.m4a.

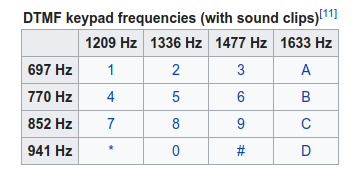

Just listening to the file we can clearly hear someone dialing numbers on a phone. Based on some challenges from previous CTF’s we know these sounds can be reversed to find what numbers were being dialed. This system is known as Dual-tone Multi-Frequency signaling and maps a pair of frequencies to a key in the telephone keypad:

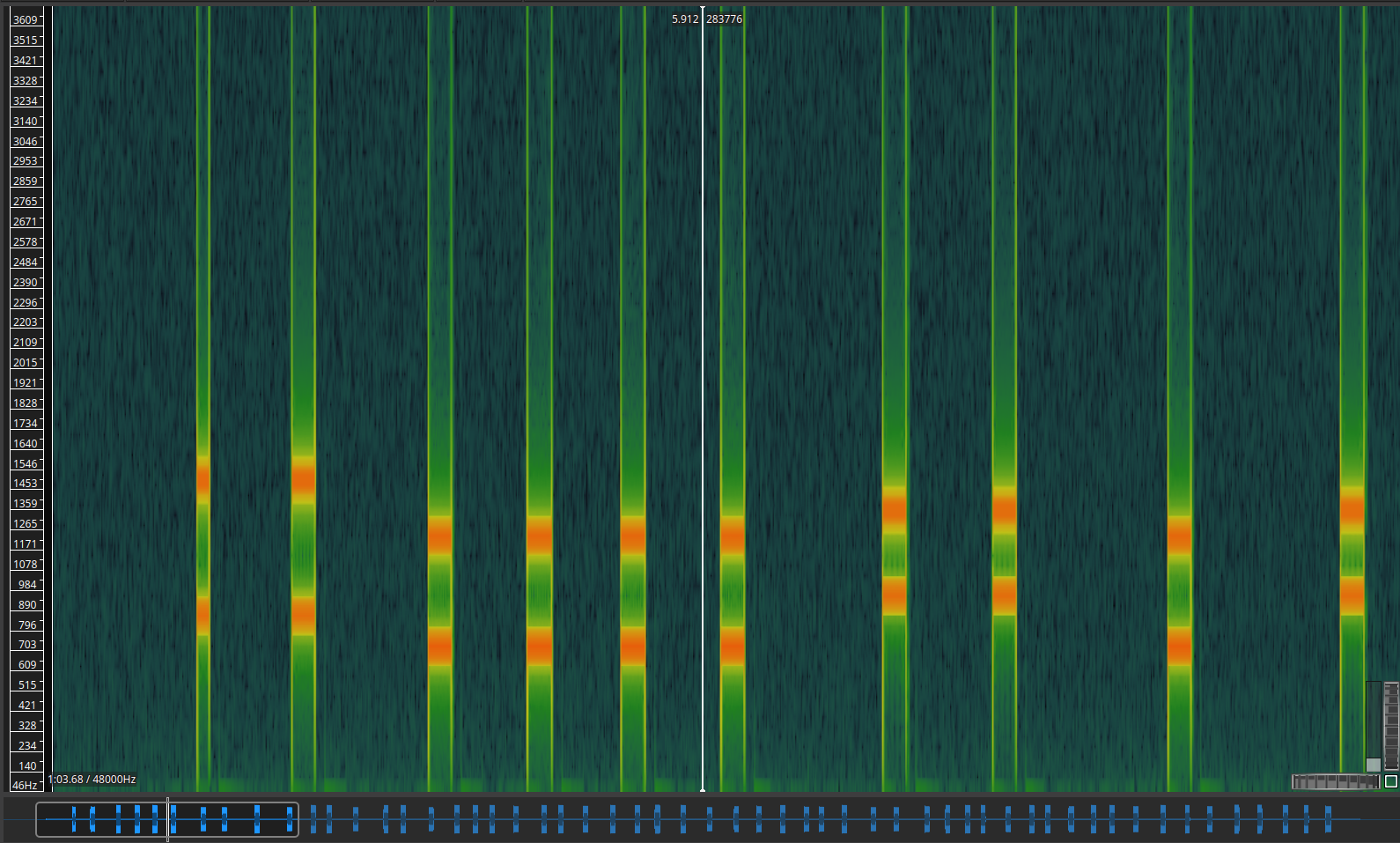

We can decode it manually just looking at the spectrum (here we use Sonic Visualizer):


But as this would take a while and is easy to mess up we used dtmf-decoder to make things easier.

Running the script on the sound file we get the numbers being dialed (or at least what the script could make out of the audio file): 9911110001011021011151161213104529910751114114A114118433125

Knowing the beginning of the flag (codefest{) we identified this numbers as the decimal representation of the flag, and by adding spaces in the right places we get:

99 111 100 0101 102 101 115 116 123 104 52 99 107 51 114 114 114 114 33 125

Which converted to ascii gives us the flag!:

codefest{h4ck3rrrr!}

This post is licensed under CC BY 4.0 by the author.
